7segment display
Easy connectable
Connect 7segment displays with MobiFlight and SimVim

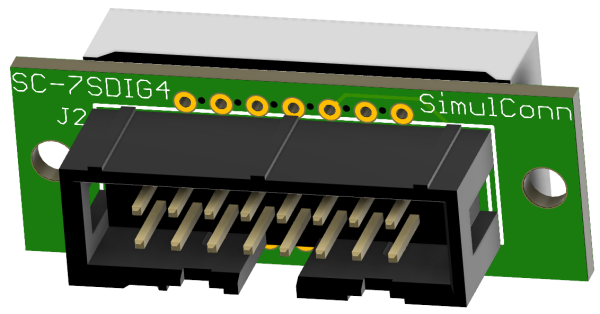

Connect 7segment displays without soldering. Use a ribbon cable to connect the display directly from the back of the display to the connector in the IO 7segment board.
0.36″ Common cathode displays are supported.
Types that fit the PCBs:
- 2-digit (click to see example with datasheet)
- 3-digit (click to see example with datasheet)
- 4-digit (click to see example with datasheet)
7segment sizes
7segment display connectors comes in the following flavours:
- 2-digit
- 3-digit
- 4-digit
- 5-digit (2+3 digit displays combined)
- 6-digit (3+3 digit displays combined)
- 7-digit (4+3 digit displays combined)
- 8-digit (4+4 digit displays combined)
7segment support
The 7segment displays connects directly to the IDC connectors in the IO 7segment board and is supported by both SimVim and MobiFlight:
Brightness of the 7segment displays can be adjusted in the software.
